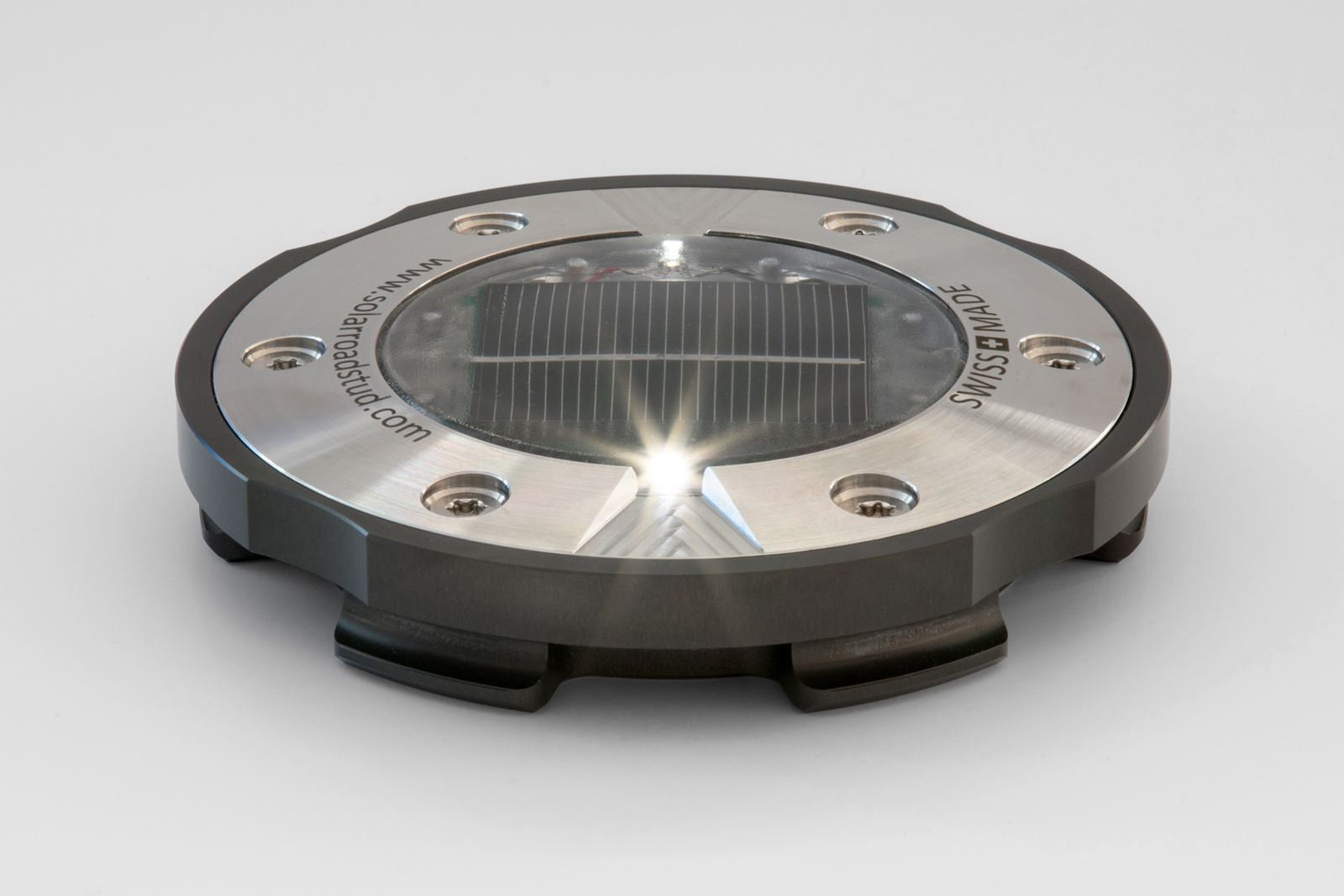

Solar Vision SV2

Snow-plough resistant Solar Road Stud for pedestrian crossing

Specifications

Content

Dimension and Weight

♦ ∅160mm x 30mm   ♦ 1 kilogram

Road placement

flush mounted (only 2,5mm above Asphalt)

max. Pressure resistant

20 tons per wheel load

Housing

♦ Ring: INOX, stainless steel (316L / 1.4404)   ♦ Base: Aluminum hard anodised

Screws

♦ M6 TORX®   ♦ Optional with Anti theft (CSK Snake Eye 2 Hole Security)

Lamp housing (capsule)

LEXAN™ POLYCARBONATE

1 or 2 LED's

♦ Uni/Bi directional   ♦ beam angle of each LED 0°−15°

3rd LED (optional)

beam angle of  LED 45°

Light output of LED

> 17'000mCd (Nichia® LED's: white, red, orange, green, blue, yellow)

Effect versions

steady / flash / snooze-mode

Energy conversion

♦ patented Dc-Dc convertor   ♦ SunBoost® Technology

Microcontroller

Microchip®

Battery type

♦ 2'200mAh Li-Polymer   ♦ High Temp Ranch (-25°C up to +80°C)

Endurance 1 LED

2'200mAh (Li-Po) : 2,5mA (1 LED) = 880h (hours)

Endurance 2 LED

2'200mAh (Li-Po) : 5,0mA (2LED) = 440h (hours)

Type of Solar cell

♦ single Mono crystaline   ♦ 62mm x 62mm (0,52Wp / 0,5V)

Special

♦ Suitable for driving over   ♦ snow–plowable

Snow Plough Resistant

Quantity

Price in Euros

001 - 050

350 Euros / Unit

051 - 100

330 Euros / Unit

100 -

310 Euros / Unit
