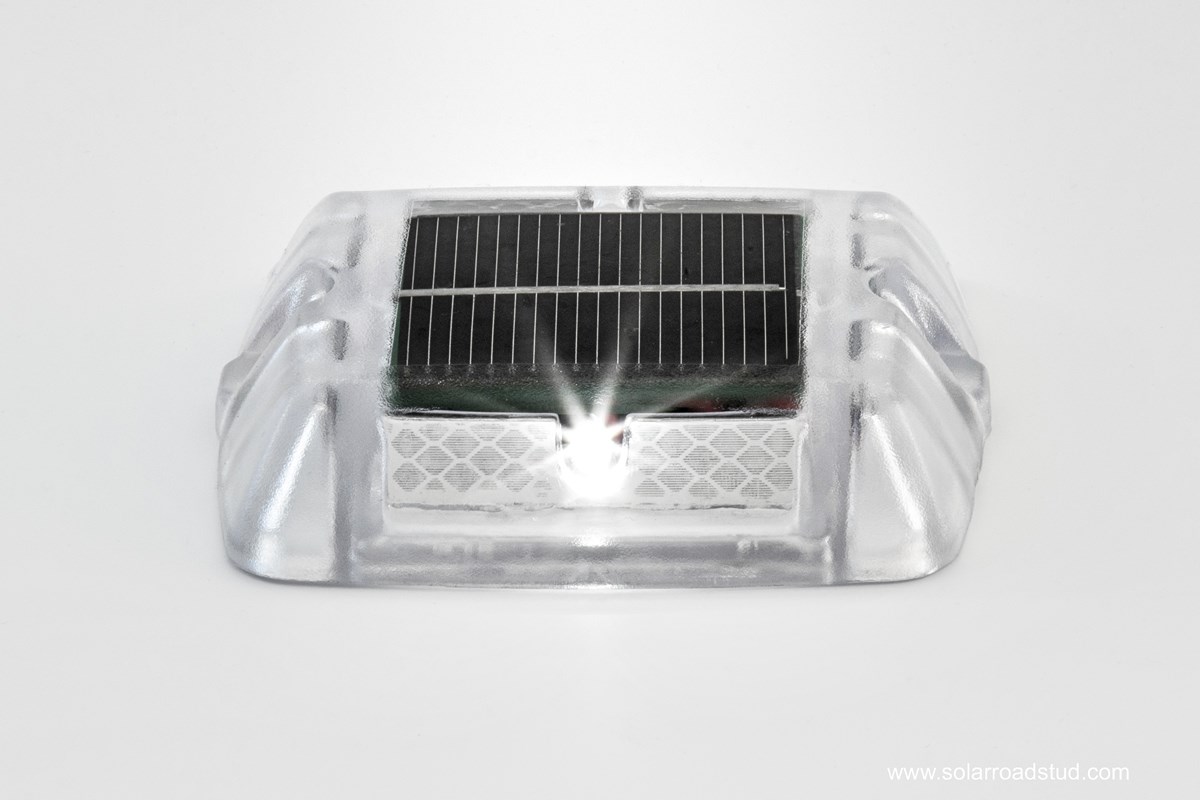

Solar Vision SV1

Road side stud for curve marking

Specifications

Content

Dimension and Weight

♦ 100mm x 100mm x 20mm   ♦ 160 gram

Road placement

Surface mounting (20mm above Asphalt)

Housing

LEXAN™ POLYCARBONATE transparent

Reflector

3M® Diamond grade reflector colours

1 or 2 LED's

♦ Uni/Bi directional (2nd LED is optional)  ♦ beam angle 0°

Light output of LED

> 17'000mCd (Nichia® LED's: white, red, orange, green, blue, yellow)

Effect versions

steady / flash / snooze-mode

Energy conversion

♦ patented Dc-Dc convertor   ♦ SunBoost® Technology

Microcontroller

Microchip®

Battery type

♦ 1650mAh Li-Polymer   ♦ High Temp Ranch (-25°C up to +80°C)

Endurance 1 LED

1'650mAh (Li-Po) : 2,5mA (1 LED) = 660h (hours)

Type of Solar cell

♦ single Mono crystaline   ♦ 50mm x 50mm (0,35Wp / 0,5V)

Feature

Not suitable for driving over

Solar Road Side Stud

The scope of application of Solarmarker extends from simple obstacle marking to complex, optical road guidance tasks. Through the solar power supply an enormous autonomy can be achieved. An expensive and complex cabling falls away.
